| Product name |
Custom LED Video Wall Advertising Display |
| Color |
Full Color |
| Item |
P1.5 |
P1.8 |
P2 |
P2.5 |
P2.976 |
P3.076 |
| Pixel pitch |
1.5mm |
1.8mm |
2mm |
2.5mm |
2.976mm |
3.076mm |
| LED Lamp |
SMD1010 |
SMD1515 |
SMD1515 |
SMD2020 |
SMD2121 |
SMD2121 |
| Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
| Panel dimension |
320x160mm |
320x160mm |
320x160mm |
320x160mm |
250x250mm |
320x160mm |
| Pixel resolution |
208x104dot |
172x86dot |
160x80dot |
128*64 dot |
84*84 dot |
104*52 dot |
| Pixel density |
422500dot/ ㎡ |
288906dots/m² |
250000dots/m² |
160000dots/m² |
112910dots/m² |
105688dots/m² |
| Scan rate |
52S |
43S |
40S |
1/32S |
1/28S |
1/26S |
| Cabinet size |
640x480mm/960x960mm/500x500mm/customization |
| Cabinet material |
Iron/ Dia-aluminium |
| Brightness |
650-1000cd/m² |
| Refresh frequency |
3840Hz / 7680Hz |
| IP Grade |
IP40 |
| Screen power supply |
AC110V/220V-5V40A |
| Max.Power Consumption |
600W/m² |
| Ave.Power Consumption |
200W/m² |
| Operating temperature |
-10℃~60℃ |
| Operating humidity |
10-90% RH |
| Life span |
100000Hours |
Introduction to Right Angle LED Display:
In the fast-evolving digital display industry, the right angle LED display has emerged as a revolutionary solution that breaks the limitations of traditional flat LED screens. Also known as 90-degree LED display or L-shaped LED screen, it is a specialized display system designed at precise 90-degree angle (or customized angles) , content flow across corners without gaps, distortion, or color inconsistency, the right angle LED display maximizes space utilization and creates a multi-dimensional visual experience, making it an ideal choice for creative advertising, architectural integration, and immersive display scenarios.
Right Angle LED Display Features :
- Seamless splicing, customized LED display:
The core advantage of the right angle LED display lies in its seamless corner integration, which is achieved through precision cabinet design, customized corner modules, and optimized pixel alignment. The panels are engineered to fit perfectly at the 90-degree joint, eliminating visible gaps and ensuring that images and videos transition smoothly around the corner, just like a single continuous display canvas.
- High definition LED display screen, indoor and outdoor LED display
The right angle LED display boasts high-definition image quality, with customizable pixel pitches to adapt to different viewing distances and application environments—from fine-pitch indoor displays for retail stores and exhibition halls to large-pitch outdoor screens for building facades and transportation hubs.
- Ultra wide viewing angle, IP65 LED display screen
Equipped with high brightness and a wide viewing angle , it ensures clear and vivid content presentation even under direct sunlight or from multiple viewing directions. Additionally, it features energy efficiency, low heat generation, and strong durability, thanks to advanced materials such as die-cast aluminum cabinets that provide excellent heat dissipation and mechanical strength, making it suitable for harsh outdoor environments with IP65 protection rating in many cases.

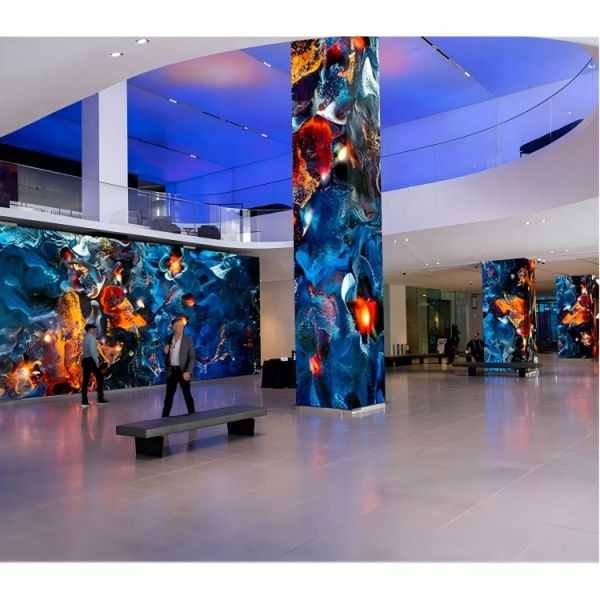

- right angle LED display for shopping malls and retail stores
- right angle LED display for building facades and corners
- right angle LED display for stages and at events
- right angle LED display used in exhibitions
- right angle LED display for transportation hubs
- right angle LED display for nightclubs
- right angle LED display for command centers
The right angle LED display customizable design allows it to fit various shapes and sizes, adapting to the specific needs of different projects—whether it is an indoor small-scale display or a large outdoor installation.
Advantages of Right Angle LED Display
The Right Angle LED Display delivers exceptional visual performance with superior refresh rate, high brightness, and accurate color reproduction, while maintaining seamless and consistent display across the 90° corner.
-
High Refresh Rate
With a high refresh rate, the screen provides smooth, stable, and flicker-free images, effectively eliminating motion blur and ghosting for clear dynamic content playback.
-
High & Adjustable Brightness
Featuring high brightness and wide adjustable range, the display remains clear and visible even in strong ambient light. It ensures excellent readability both indoors and outdoors without glare.
-
Vivid & Uniform Color Performance
Equipped with wide color gamut and precise color calibration, it reproduces rich, realistic colors with high consistency. The brightness and color are evenly distributed across the entire screen, including the right-angle joint, for a seamless and professional visual effect.
-
Stable & Durable
The display maintains stable brightness and color consistency during long-term operation, with low power consumption and reliable performance, making it ideal for commercial advertising, exhibitions, and architectural displays.
