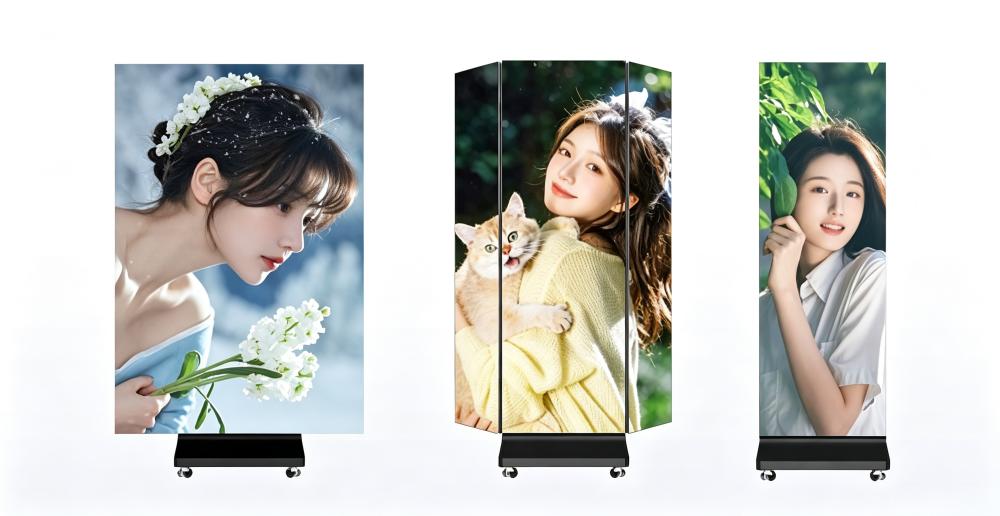

What is the Tri-fold LED Poster Display?
The Tri-fold LED Poster Display is an all-in-one, plug-and-play foldable LED standing signage solution designed to replace traditional static posters. Featuring a left–right tri-fold dual-sided structure, a 1280×1920mm display area, and a durable aluminum cabinet with cold-rolled steel base, this portable LED poster screen unfolds into a seamless widescreen or folds into a double-sided advertising kiosk—maximizing visibility from multiple angles.
Built for commercial environments, the LED Poster Display freestanding digital signage poster is equipped with an industrial-grade quad-core processor, supports smart cloud control platform for remote content management across multiple screens.
- LED Poster Screen: High-definition screen seamless,splicing with high refresh rate.Ultra-high-definition image display,silky image quality
- Innovative Folding Design, Space-Saving Compact&Portable-Folds to reduce volume by 50%,optimizing storage and transport compared to traditional posters;when folded,it transforms into a double sided screen,capable of displaying the same or different contents on each side.
- Double sided LED poster screen:Seamless Multi-Unit Splicing It can work as a standalone unit and supports seamless combination of multiple units to create one large unified screen,catering to diverse application needs.
- Adopt GOB Lamination Technology :The brand-new GOB lamination technology,process ensures a splash-proof surface and superior safety. Easy Install front-Access Service: Plug-and-play installation,front-access fast module re-placement without screen disassembly for higher efficiency.
- Die-casting Aluminum Cabinet Super High Flatness :The Die-casting Aluminum cabinet make sure super thin and lightweight each panel,easier to move here and therefor temporary occasions such as convention and exhibition centers, shopping centers, conference halls,weddings,performances,airports,stations,supermarkets, restaurants,photo studios, etc
Poster LED display Paramenters:
| HSCXLED-Trifold LED Poster Display |
| Model |
P1.25 |
P1.53 |
P1.86 |
P2 |
P2.5 |
| Pixel pitch |
1.25mm GOB |
1.53mm GOB |
1.86mm GOB |
2mm GOB |
2.5mm GOB |
| LED configuration |
SMD 1010 |
SMD 1212 |
SMD 1515 |
SMD 1515 |
SMD 2020 |
| Pixel density |
640000(dots/sqm) |
422500(dots/sqm) |
288888(dots/sqm) |
250000(dots/sqm) |
160000(dots/sqm) |
| Module size |
320*160mm |
320*160mm |
320*160mm |
320*160mm |
320*160mm |
| Scan mode |
1/64 scan |
1/52 scan |
1/43 scan |
1/40 scan |
1/32 scan |
| Pixel matrix per Module |
256*128 dots |
208*104 dots |
172*86 dots |
160*80 dots |
128*64 dots |
| Screen size |
1280mm*1920mm |
| Cabinet Resolution |
1024*1536 dots |
832*1248 dots |
688*1032 dots |
640*960 dots |
512*768dots |
| Cabinet Weight |
76kg/set |
| Cabinet Size |
Unfolding:W1280*H1920mm(lncludes feet:W646*H2060mm*L550mm) |
| Refresh rate |
3840-7680hz |
| Brightness |
650-1000nit |
| Ingress Protection |
IP40 |
| Viewing Angle |
160°/160° |
| AC Input Voltage |
AC 110V/220V±10%,50Hz/60Hz |
| Gray Level |
14-16bit |
| Working Temperature |
-40 -50(℃) |
| Operating Humidity |
10%~95% non-condensing |
| Video Format |
Support RM,FLV,AVI,MP4 and other mainstream video formats |
| Display Function |
Video/Text/Picture/Time/3D Text/Office/SWF |
| Controllnterface |
Wifi/4G/USB HDMI*2,USB2.0*2,AUX*1 |
| Operating Equipment |
Phone, iPad, PC, Internet |
| Life Time |
≥ 100000(Hours) |
| Control System |
Novastar,Colorlight, HuiDu |
All-in-One Tri-fold LED Poster Display
- 1280×2060×449mm Poster Size
- Plug-and-Play Design
- Smart Cloud Control Platform
- Multi-screen Seamless Splicing
- High Definition LED Display
- Low Power Consumption
- Built-in Fold Sensing System
- Flight Case with Ramp Design
All-in-One Tri-fold LED Poster Design
The led poster features a left–right opening tri-fold dual-sided design, making it lighter and slimmer than traditional advertising screens. It offers a product size of 1280 × 2060 × 449mm and a display area of 1280 × 1920mm.
This all-in-one LED poster weighs 76-79kg and supports mobility. Simply plug it in to start using—easy to transport, install, and operate.
Stable Structure & Strong Performance
The Tri-fold LED Poster Display adopts a durable aluminum cabinet with a cold-rolled steel base, ensuring a strong and stable structure that resists deformation while keeping the display surface flat and reliable.
Equipped with an industrial-grade motherboard and a quad-core processor, it supports H.265 4K@60Hz decoding, delivering smooth, secure, and high-quality visual performance for professional applications.
High-Definition LED Display
Featuring advanced LED technology, this Tri-fold LED Poster Display delivers sharp resolution and vivid colors, perfect for showcasing dynamic videos or static images.
Ideal for malls, exhibitions, and conferences, poster led display helps promote brands, highlight products, and support event marketing effectively.
Seamless Splicing LED Display Poster
The Tri-fold LED Poster Display unfold for a seamless large display or fold into a double-sided screen, showing content on both front and back for maximum advertising impact.
Poster led display supports multi-screen splicing without heavy frames. Setup is quick, simple, and cost-effective. Single unit is 2:3, two units combine to 4:3 (91-inch) to match standard video perfectly.
Energy-Efficient LED Display
Designed for low power consumption and reduced emissions, poster led display ensures eco-friendly operation while maintaining high performance.
The Tri-fold LED Poster Display supports continuous 24/7 operation with stable temperature control, preventing overheating or screen damage, giving users peace of mind.
Durable Casters for Easy Mobility
Tri-fold LED Poster Display equipped with high-quality omnidirectional casters, each supporting over 50kg, ensuring stability and strength. Built-in adjustable support feet make it easy to move the display and keep it level at all times.
When connecting multiple screens, the adjustable feet allow quick alignment for a perfectly even setup.
Smart Cloud Control Management
Manage multiple displays remotely through a centralized platform. Easily customize content, windows, and playback modes.
Built-in fold-sensing system automatically switches between single- and double-sided display. Tri-fold LED Poster Display supports WIFI, 4G/5G, RJ45, USB, HDMI, and content can be published from PC, smartphone, tablet, or USB drive.
Optional Stereo Audio Support
The poster led display supports high-quality stereo audio with dual speakers, delivering synchronized sound and visuals for a more engaging advertising experience.
Optional feature: requires installation of active speakers to enjoy full stereo effect, enhancing both video and audio impact.
Easy Mobility and Transport
The LED poster display is equipped with high-quality universal wheels, each capable of bearing over 50kg. The sturdy and stable design, combined with built-in leveling support feet, allows easy movement and quick height adjustment during multi-screen splicing.
Comes with a standard ramp-equipped flight case for safe transport and rental applications. The lightweight, ergonomic design makes assembly, disassembly, and handling effortless—even for female users.
